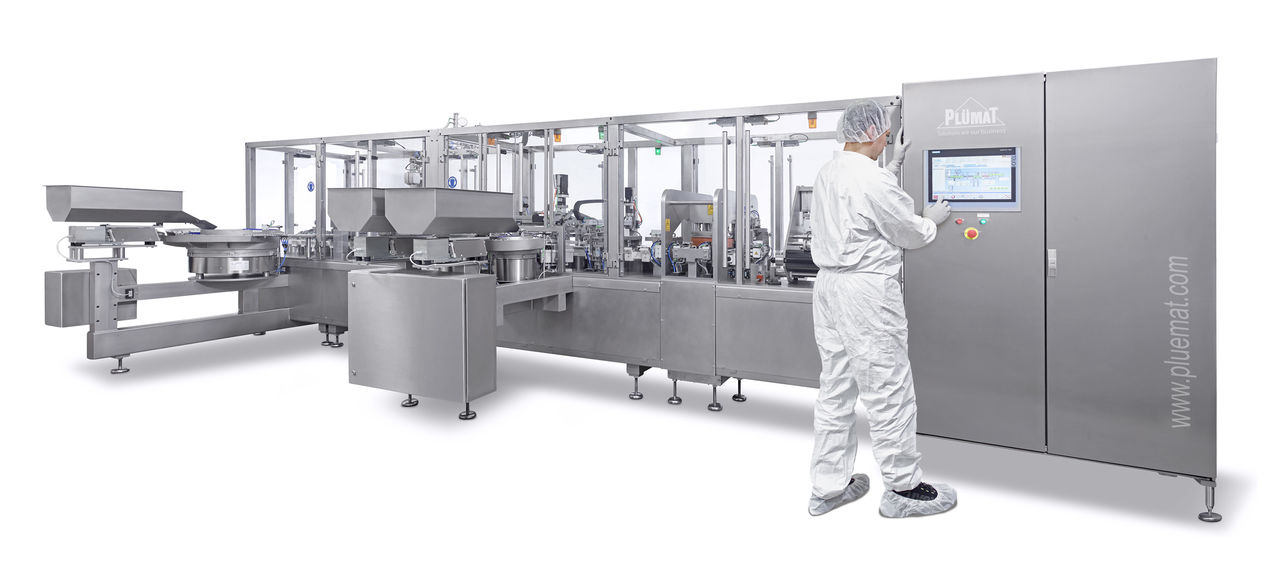

Form - Fill - Seal line for bags

PlümatForm - Fill - Seal line for bags
Réf : FFS 991 | 992 | Fabricant : Plümat

As a pioneer PLÜMAT integrated the Form Fill Seal technology in the production process of IV-bags, in 1996. The formed and sealed bags are made in one auto- matic cycle without any further steps. This process allows to control the whole system in a really simple way and also decreases the risk of contamination.
The PLÜMAT Form Fill Seal Line 991|992 stands out due to its reduced supply media consumption and small machine size at high quality output. The minimal need of cleanroom area in relation to output decreases the cleanroom invest significantly.

Principales caractéristiques

Output* 2300 Bags/h | 4200 Bags/h
Bag matérial
Multi-layer film
Formats** 100 ml | 250 ml | 500 ml | 1000 ml

* FFS 991 | FFS 992 (500ml)
** more formats on demand



Spécifications

  FFS 991 FFS 992
Power Supply 230 V/400 V, 50 Hz, 3 Ph; appr. 18,0 kW 230 V/400 V, 50 Hz, 3 Ph; appr. 22,0 kW
Power consumption appr. 3,0 kWh appr. 4,0 kWh
Compressed air appr. 7 bar appr. 7 bar
Compressed air consumption appr. 1500 Nl/min appr. 2200 Nl/min
Cooling water n.n. n.n.
Machine weight appr. 3000 kg appr. 5000 kg
Dimensions (L x W x H) appr. 5431 x 2495 x 1950 mm appr. 7145 x 3090 x 1950 mm
