Bag Making

ColpittBag Making
Réf : BM 444-10 Blood | BM 443-8 Blood | Fabricant : Colpitt

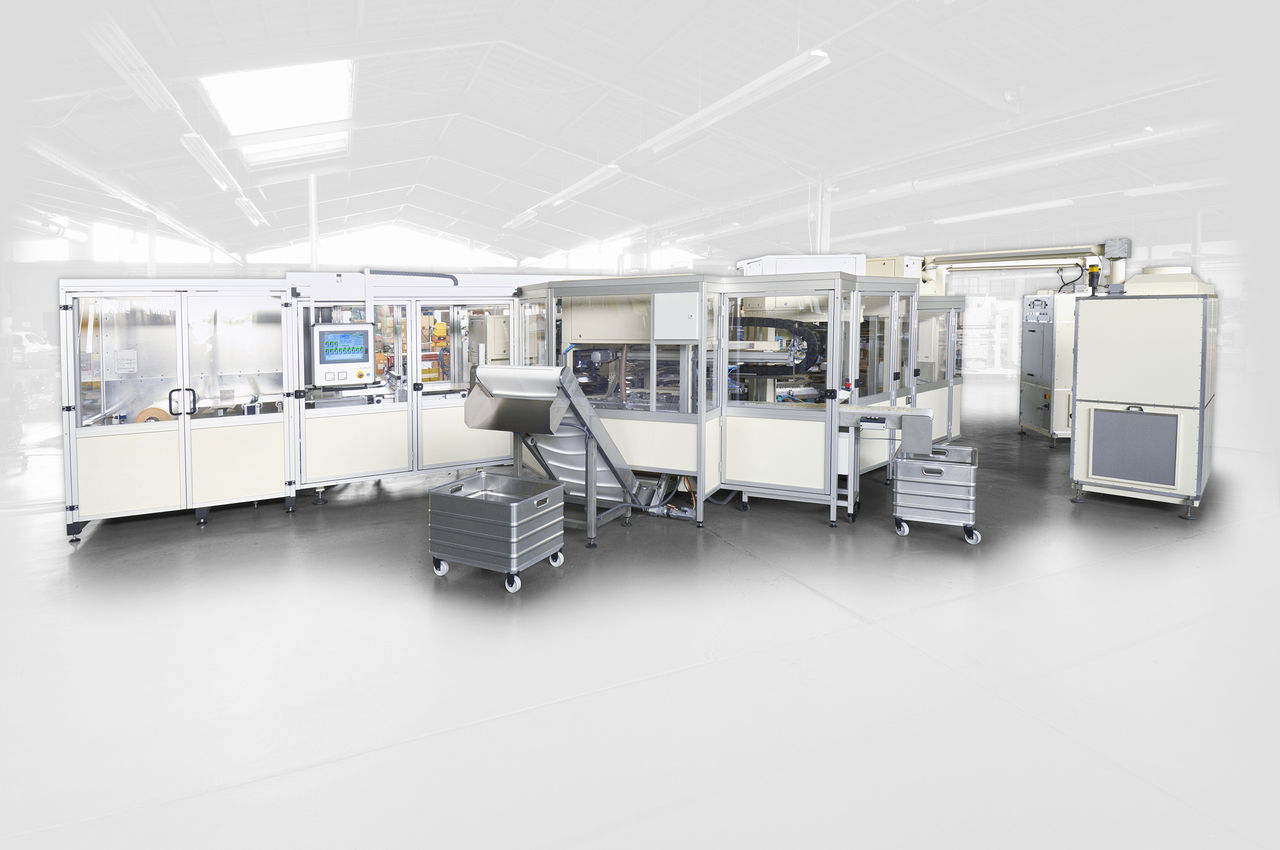

The Colpitt blood bag makers stand out for their flexibility to make many different blood related products on one machine. Such as blood bags with different port systems, shapes and lengths, top & bottom bags and sample bags. This flexibility together with the quick exchange tooling results in a highly efficient piece of equipment meeting our customers’ needs.

Principales caractéristiques

Output* Up to 1.800 Bags/h | up to 1.250 Bags/h
Bag material PVC film

* BM 444-10 Blood | BM 443-8 Blood

Spécifications

  BM 444-10 Blood BM 443-8 Blood
Power supply: Machine 400V, 50Hz; 3Ph; 100 KVA; 3x100 A 400V, 50Hz; 3Ph; 40 KVA; 3x80 A
Generator 1 | 7 kW 400V, 50Hz; 3Ph; 14 KVA; 3x35 A 400V, 50Hz; 3Ph; 14 KVA; 3x35 A
Generator 2 | 15 kW 400V, 50Hz; 3Ph; 28 KVA; 3x63 A 400V, 50Hz; 3Ph; 28 KVA; 3x63 A
Compressed air approx. 6 bar approx. 6 bar
Compressed air consumption appr. 720 Nl/min. appr. 600 Nl/min.
Machine weight appr. 10 000 kg appr. 8 500 kg
Dimensions (L x W x H) appr. 10134 x 8156 x 2350 mm appr. 8500 x 7023 x 2350 mm
