Bag Filling and Sealing

PlümatBag Filling and Sealing
Réf : PLÜMATEX-BFM 007 | Fabricant : Plümat

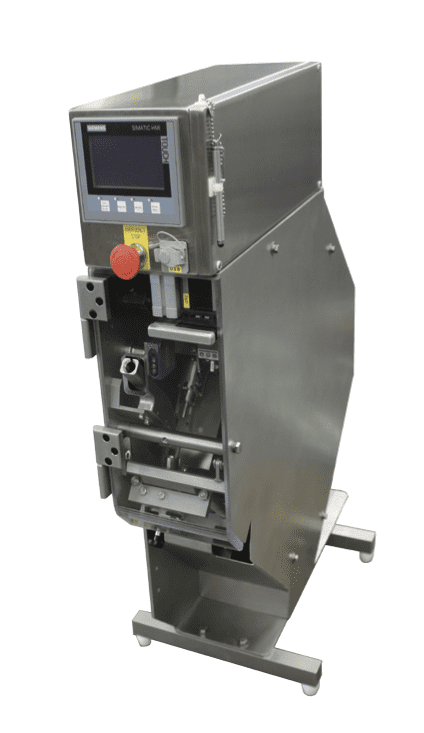

The PLÜMATEX-BFM 007 Filling and Sealing machine has been designed as a table top device to process bags with tube connectors.
Bag as well as stopper(s) are fed manually into the machine. All further operations run automatically. The system is suitable for inline sterilization (CIP/SIP) up to max. 125°C.

Principales caractéristiques

Output 450 Bags/h (500 ml)
Container Flexible bag with tube connectors (PP, PE, PVC, EVA, EVOH)**
Sealing Stopper
Formats* 50 ml | 100 ml | 250 ml | 500 ml | 1000 ml **

*steplessly adjustable
** more formats on demand

Spécifications

  PLÜMATEX-BFM 007
Power supply 230 V, 50 Hz; 0,1 kW; 10 A
Filling system turbine / massflow (optional)
Compressed air 6 bar
Compressed air consumption 20 Nl/min
Machine weight appr. 80 kg
Dimensions (L x W x H) appr. 680 x 350 x 825 mm
