Semiautomatic Bag Filling and Sealing Machine

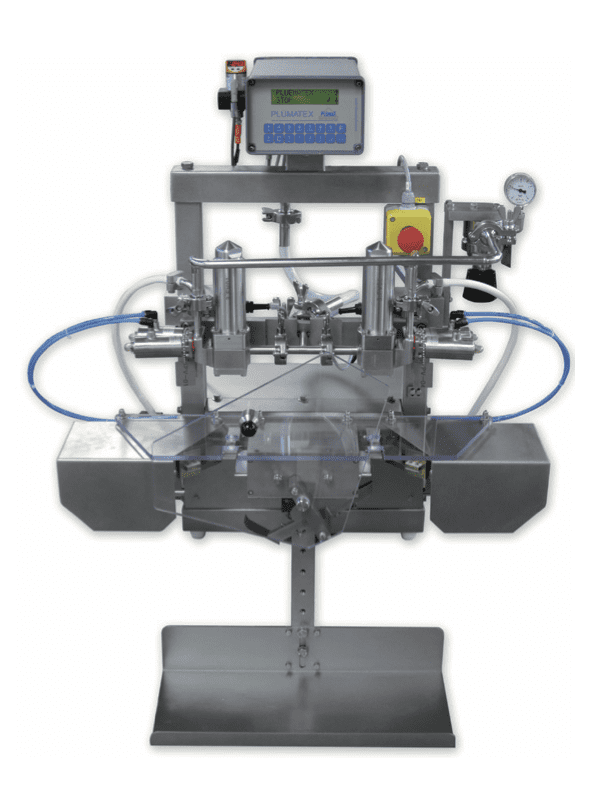

PlümatSemiautomatic Bag Filling and Sealing Machine
Réf : PLÜMATEX-F 014 BFH | Fabricant : Plümat

The PLÜMATEX-F 014 BFH is a table top bag filling and sealing machine with one or two filling nozzles. A foot pedal operation initiates the filling and the following sealing cycle.
The tube welding is performed by high frequency welding.

Principales caractéristiques

Output 250 | 500 Bags/h (one | two filling positions; 250 ml)
Container PVC or EVA bags
Formats* 10 ml up to 5000 ml

*steplessly adjustable

Spécifications

  PLÜMATEX-F 014-1 BFH PLÜMATEX-F 014-2 BFH
Power supply 230 V, 50 Hz; appr. 0,5 kW 230 V, 50 Hz; appr. 0,5 kW
Consumption power appr. 0,5 kWh appr. 0,5 kWh
Compressed air 6 bar (dry and free of oil) 6 bar (dry and free of oil)
Consumption appr. 5 NL/min appr. 10 NL/min
Filling system turbine / massflow (optional) turbine / massflow (optional)
Product connection tri-clamp tri-clamp
Machine weight appr. 100 kg appr. 110 kg
Dimensions (L x W x H) appr. 900 x 830 x 860 mm appr. 900 x 870 x 860 mm
Materials All product contact parts are made from stainless steel 1.4404/1.4571 All product contact parts are made from stainless steel 1.4404/1.4571
