Semiautomatic Vacuum Overwrapping Machine

PlümatSemiautomatic Vacuum Overwrapping Machine
Réf : PLÜMATEX-S 003-6 | Fabricant : Plümat

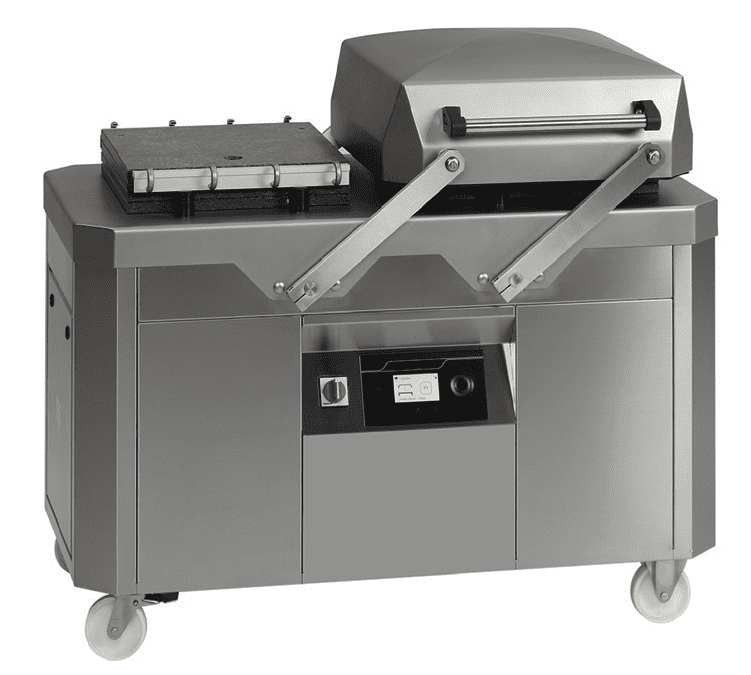

The PLÜMATEX-S 006-6 is an offline double chamber vacuum overwrapping machine to seal bags with vacuum separately. The machine is equipped with two vacuuming and closing chambers which can be used one after the other.
Sealing on both sides in each chamber of the machine is possible.

Principales caractéristiques

Output 500 Bags/h*
Chamber width 450 mm
Chamber length 495 mm
Chamber height 130 mm

*depending on the performance of the operator
all output data are based on experience

Spécifications

  PLÜMATEX-S 003-6
Power supply 230/400 V, 50 Hz; appr. 4 kW
Power consumption appr. 2,8 kWh
Vacuum pump appr. 100 m3/h
Internal Chamber (LxWxH) 645 x 665 x 200 mm
Length of sealing bar 4 x 450 mm
Machine weight appr. 245 kg + 70 kg
Dimensions (L x W x H) appr. 1370 x 850 x 985 (1335*) mm
Materials stainless steel 1.4301.
